Module Connect

The interface made to measure
The Module Connect is the concept of a new type of plug-in connector for the connection of electrical cables, fibre optic cables and pneumatic hoses. As a cable connector, our modular connector is characterised by a space-saving, flat housing and is used wherever several or a large number of cables are to be plugged into the smallest possible space. The quick connector is concealable without additional coding. Convince yourself of our modular connector.

Número de productos: 56

Module Connect 4 cable entries

Instead of many plug-in/disconnect points in a confined space, only one individually configurable interface
  • Set consists of 5 interfaces or 10 Module Connect plug-in connectors

Module Connect 3 cable entries

Instead of many plug-in/disconnect points in a confined space, only one individually configurable interface
  • Set consists of 5 interfaces or 10 Module Connect plug-in connectors

Elemento de fijación para Module Connect

  • Terminal para instalación en la pared, en el suelo o para la unión de carcasas
  • Permite un montaje flexible
  • Paquete de 10 elementos de fijación

Sujeción doble para Module Connect

  • Conecta y fija la carcasa de Module Connect
  • 1x Doble cierre
  • 1x Tornillo
  • 1x Tuerca

Sujeción simple para Module Connect

  • Conecta y fija la carcasa Module Connect
  • 1x Cierre individual
  • 1x Tornillo
  • 1x Tuerca

Module Connect strain relief 09140008034 / 09140008033

Available strain relief for the Module Connect.

Han EE® Quick Lock module 09140122632 / 09140122732

Number of contacts: 12, silver-plated
Electrical data: 10A / 250V
Connection type: Quick Lock connection
Conductor cross-section: 0.25 ... 1.5mm²

Han DD® module 09140123102 / 09140123002

Number of contacts: 12
Electrical data: 10 A / 250V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D

Han® DDD module 09140173001 / 09140173101

Number of contacts: 17
Electrical data: 10A / 150V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D

Han DD® Quad module 09140423001 / 09140423101

Number of contacts: 42
Electrical data: 10A / 150V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D

Han® High Density module 09140253001 / 09140253101

Number of contacts: 25
Electrical data: 4 A / 50 V
Conductor cross-section: 0.08 ... 0.52mm²
Connection type: Crimp connection, D-Sub

5 A - D-Sub - crimp contacts pin

5A - D-sub - crimp contacts pin (gold-plated or HMC gold-plated) (PU: 100 pieces)

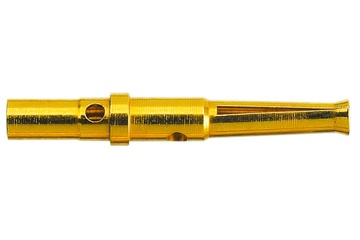

5 A - D-Sub - crimp contacts bushing

5A - D-sub - crimp contacts socket (gold-plated or HMC gold-plated) (PU: 100 pieces)
