Steel guide trough | 94.30, 94.31 | Trough height: 170mm

Very stable and tough for heavy-duty applications

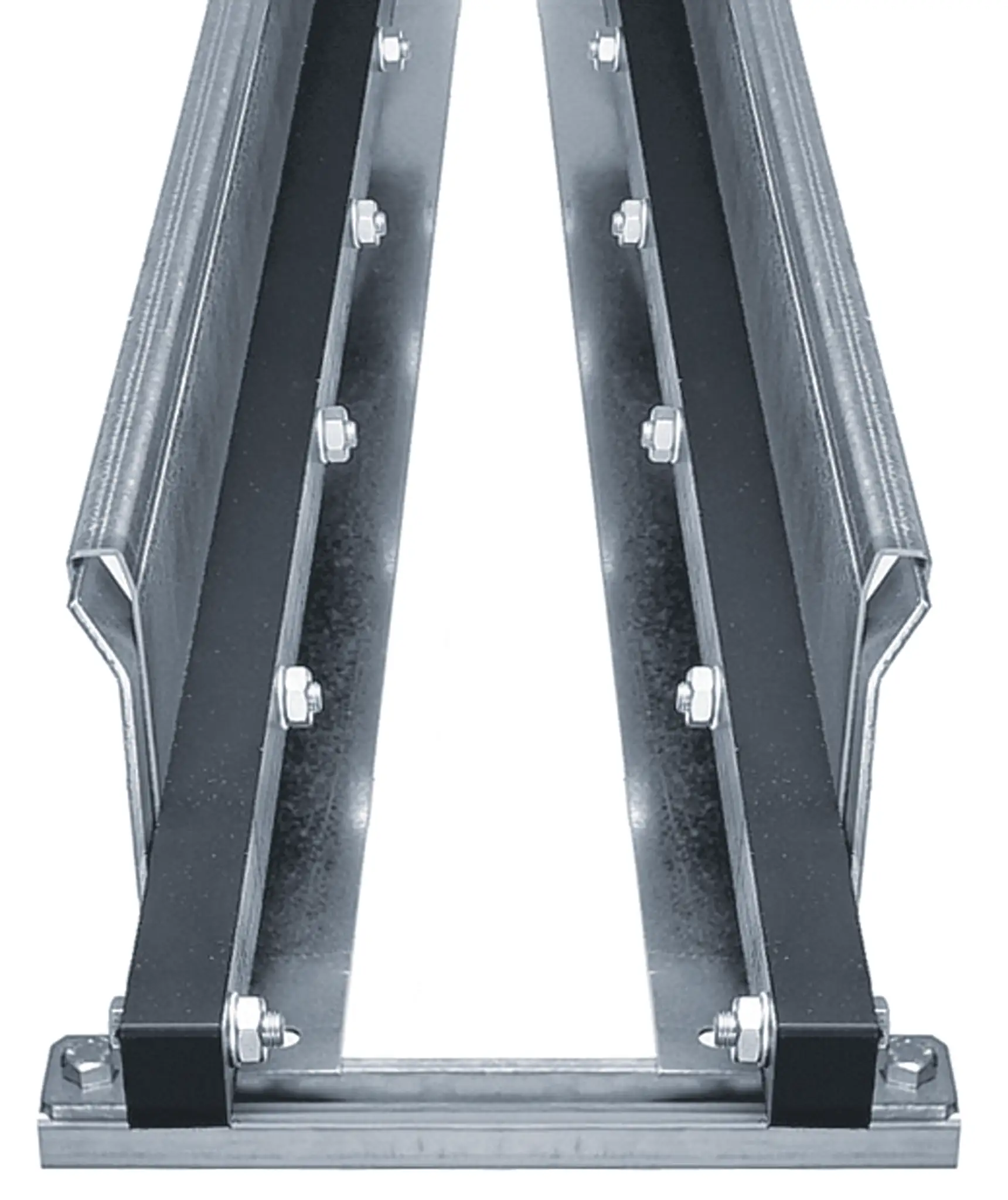

The igus steel guide trough is a robust guiding system for energy chains, primarily used for long travel distances and high loads. It is made of galvanized steel providing stable, durable, and low-maintenance chain guidance.

• Suitable for the series E4Q.58, H4Q.58, E4.56, H4.56, R4.56, E4.64L, 4040, 14140, R18840, 14240, 14340, E6.62, 4040HD, 8840HD
• Heavy-duty: very strong and tough guide trough made of steel
• Resistant: side parts made made from galvanised steel
• Easy to install: installation set for joint and attachment surface connections, secure connection without misalignment and without welding
•


Typical applicatons: for long distances, e.g. in conveying systems, crane installations, and bulk material handling
