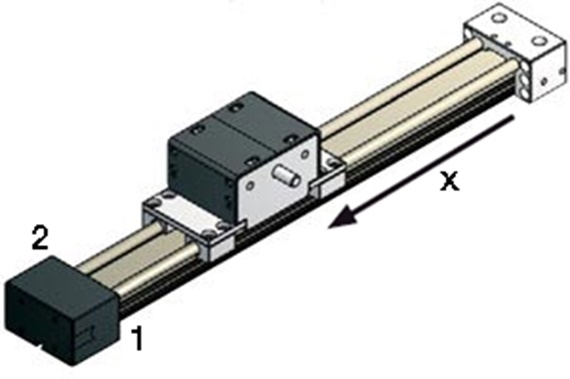

ZAW-1040 - cantilever axis

Special properties

Technical information

ZAW cantilever axis

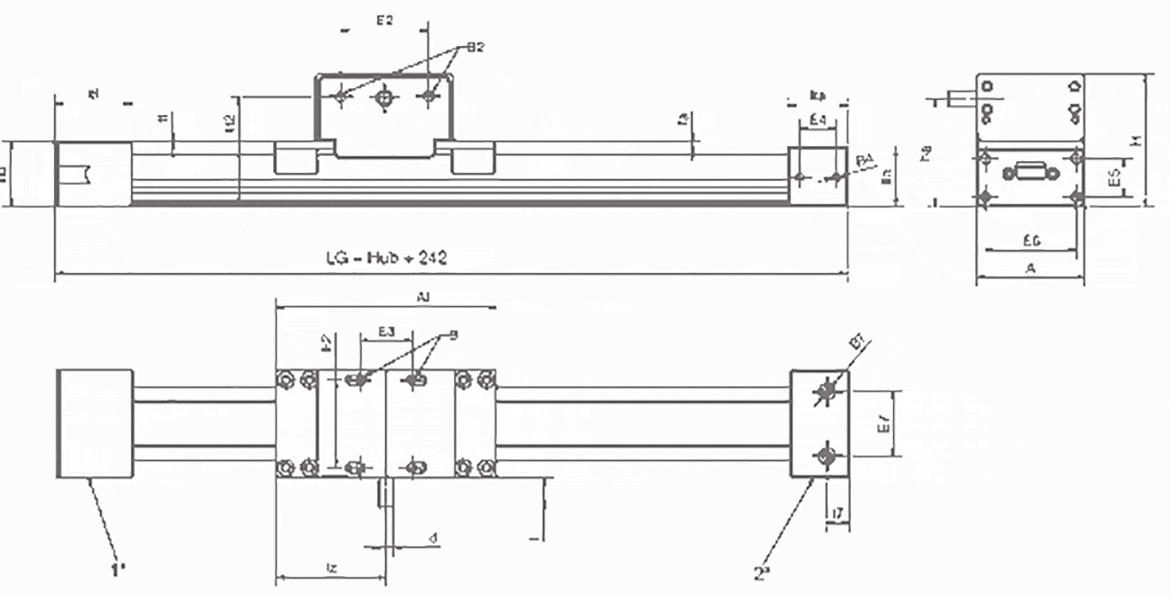

Dimensions [mm]

More about selected part:

Mounting dimensions [mm]

More about selected part:

Order no.	A -0.3	H	LG stroke	Al ±0.3	ha ±0.1	d h9	l +1	lz
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
ZAW-1040-02-S-150-L-LG	74	91	242	150	74	10	20	75	Upon request
ZAW-1040-02-S-150-R-LG	74	91	242	150	74	10	20	75	Upon request
ZAW-1040-02-S-150-L/R-LG	74	91	242	150	74	10	20	75	Upon request
