System E6 low noise cable carriers

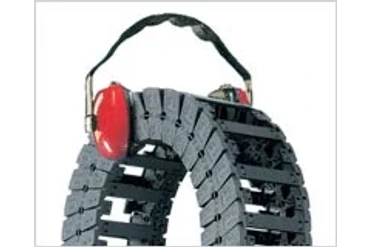

System E6 cable carriers offer numerous advantages besides a long life cycle. It operates extremely quietly with minimal vibrations, and the innovative design minimizes the polygon effect, which occurs during the rolling motion of a standard-design cable carrier. The ultra-low noise levels have been confirmed in a report from the Rheinland Inspection Agency.

Contact an expert

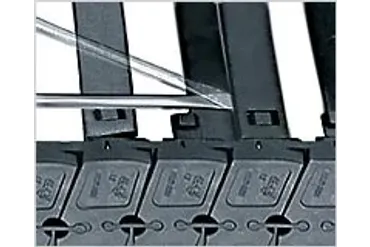

System E6: To close, press and click into position.

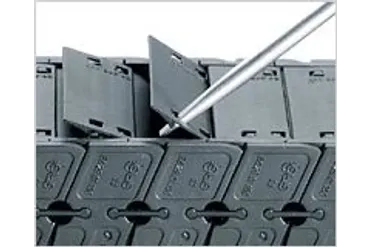

E-Tube®: Remove lids by prizing open with a screwdriver.

E6-29

Inner height hi: 1.14 (29 mm)
Inner widths Bi: 1.18 - 4.72 (30 - 120 mm)
bending radii R: 2.17 - 5.91 (55 - 150 mm)
Pitch: 0.87 (22 mm)

energy chain with crossbars at every other link

E61-29

nner height hi: 29 mm
Inner widths Bi: 30 - 120 mm
bending radii R: 55 - 150 mm
Pitch: 22 mm

e-chain®

E6-35

Inner height hi: 1.38 (35 mm)
Inner widths Bi: 1.18 - 4.72 (30 - 120 mm)
bending radii R: 2.17 - 2.95 (55 - 100 mm)
Pitch: 0.98 (25 mm)

energy chain with crossbars at every other link

E6-40

Inner height hi: 1.57 (40 mm)
Inner widths Bi: 1.57 - 11.81 (40 - 300 mm)
bending radii R: 2.48 - 7.87 (63 - 200 mm)
Pitch: 1.09 (27.8 mm)

energy chain with crossbars at every other link

E6-52

Inner height hi: 2.05 (52 mm)
Inner widths Bi: 1.57 - 11.81 (40 - 300 mm)
bending radii R: 2.95 - 9.84 (75 - 250 mm)
Pitch: 1.18 (30 mm)

energy chain with crossbars at every other link

E6-62

Inner height hi: 2.44 (62 mm)
Inner widths Bi: 1.97 - 15.75 (50 - 400 mm)
bending radii R: 4.53 - 13.78 (115 - 350 mm)
Pitch: 1.97 (50 mm)

energy chain with crossbars at every other link

E6-80L

Inner height hi: 3.15 (80 mm)
Inner widths Bi: 1.97 - 23.62 (50 - 600 mm)
bending radii R: 5.91 - 17.72 (150 - 450 mm)
Pitch: 2.56 (65 mm)

energy chain with crossbars at every other link

E6-80

Inner height hi: 3.15 (80 mm)
Inner widths Bi: 1.97 - 23.62 (50 - 600 mm)
bending radii R: 5.91 - 17.72 (150 - 450 mm)
Pitch: 2.56 (65 mm)

energy chain with crossbars at every other link

R6-29

Inner height hi: 1.10 (28 mm)
Inner widths Bi: 1.18 - 4.72 (30 - 120 mm)
bending radii R: 2.17 - 5.91 (55 - 150 mm)
Pitch: 0.87 (22 mm)

E-Tube

R6-40

Inner height hi: 1.57 (40 mm)
Inner width Bi: 2.44 (62 mm)
bending radii R: 2.48 - 7.87 (63 - 200 mm)
Pitch: 1.09 (27,8 mm)

E-Tube

R6-52

Inner height hi: 2.05 (52 mm)
Inner widths Bi: 1.57 - 11.81 (40 - 300 mm)
bending radii R: 2.95 - 9.84 (75 - 250 mm)
Pitch: 1.18 (30 mm)

E-Tube

Low noise cable carrier features and benefits:

Extreme low-noise operation - 37 dB(A) depending on the speed
Snap-open along the inner or outer radius
Some types available as enclosed tubes
For high speeds and high accelerations
Modular design, can be shortened or lengthened at any point
Minimal vibrations
High stability and tensile strength
Various interior separation options available
KMA mounting brackets available with integrated strain relief
E6 adapter link for gliding applications minimizes excess lengths in end positions
Quick and easy assembly

Typical applications for low noise cable carriers:

Cleanroom
Printing machines
Material handling
Robotics
Machine tools
Measuring equipment
Semiconductor industry
Medical technology
Electronics
General machinery

Assembly instructions

How to assemble System E6 cable carriers.

Assembly Instructions System E6

Low noise cable carrier Application examples

Different application examples using E6 cable carriers from various industries all around the world

E6 applications
