iglide® H4 and iglide® T500 in gearboxes

No more contact corrosion
By using iglide® H4 polymer plain bearings, the contact corrosion by metal bushings could be completely eliminated for an automobile manufacturer. In addition to the cost savings, the improved dampening properties of the plain bearings were utilized. This improved the feel of the shift and minimized noise.


Main criteria for use:

  • Pivoting movement with each gear change
  • Peak temperature up to 160°C
  • Push out forces after 68h > 150N
  • Contact with gear oil possible

In contrast to igus bearings, metal-rolled bearings can have problems of contact corrosion with die-cast aluminium housings

Gearbox

iglidur H4 / T500 in gearbox actuator

Browse Applicable Products

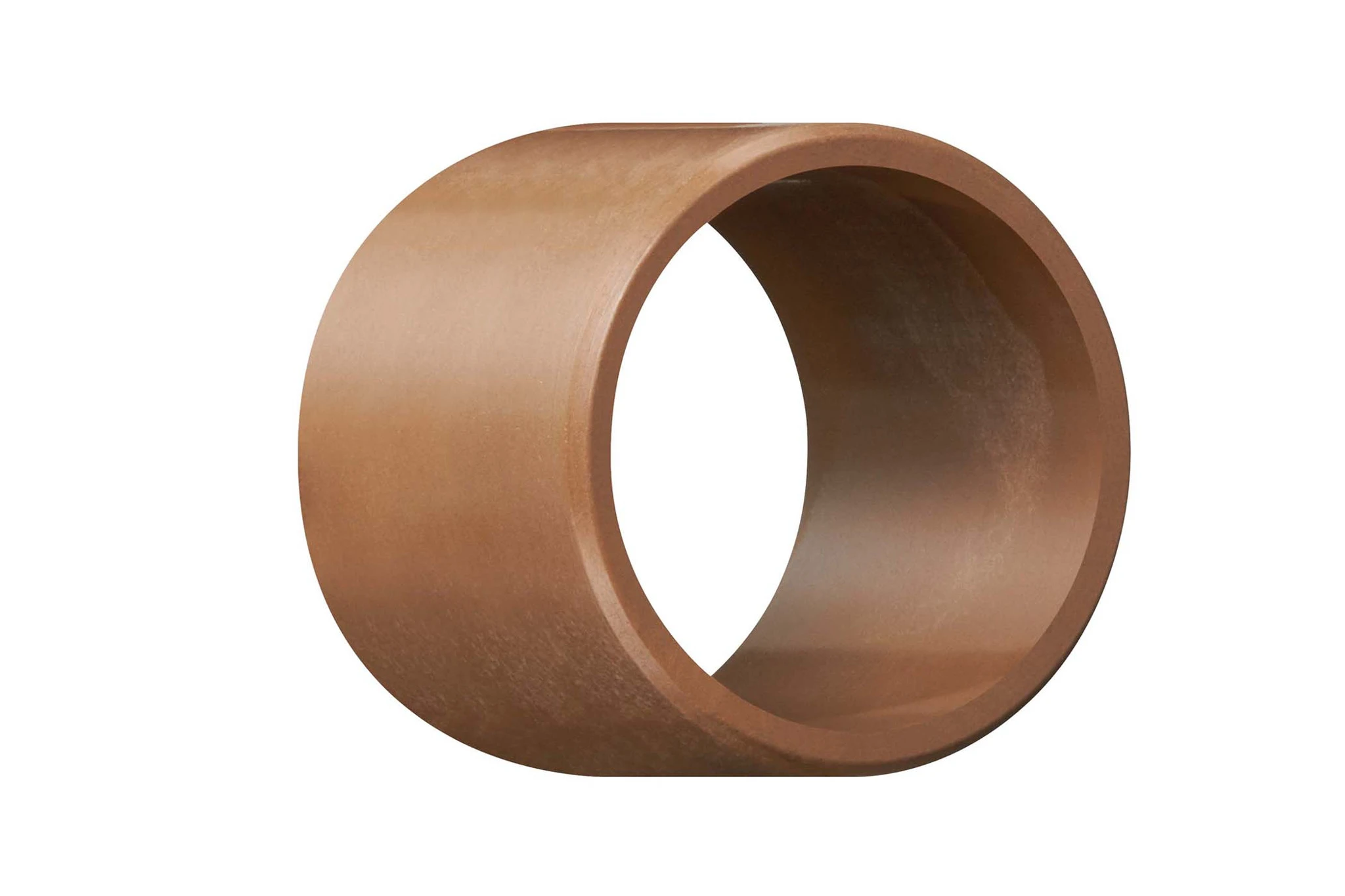

iglide® H4 plain bearing

iglide® H4

  • The automotive standard for temperatures up to +200°C (+392 °F)
  • Low coefficients of friction
  • High wear resistance
  • High temperature resistance: 40°C to + 200°C (104 °F to +392 °F)
Shop now

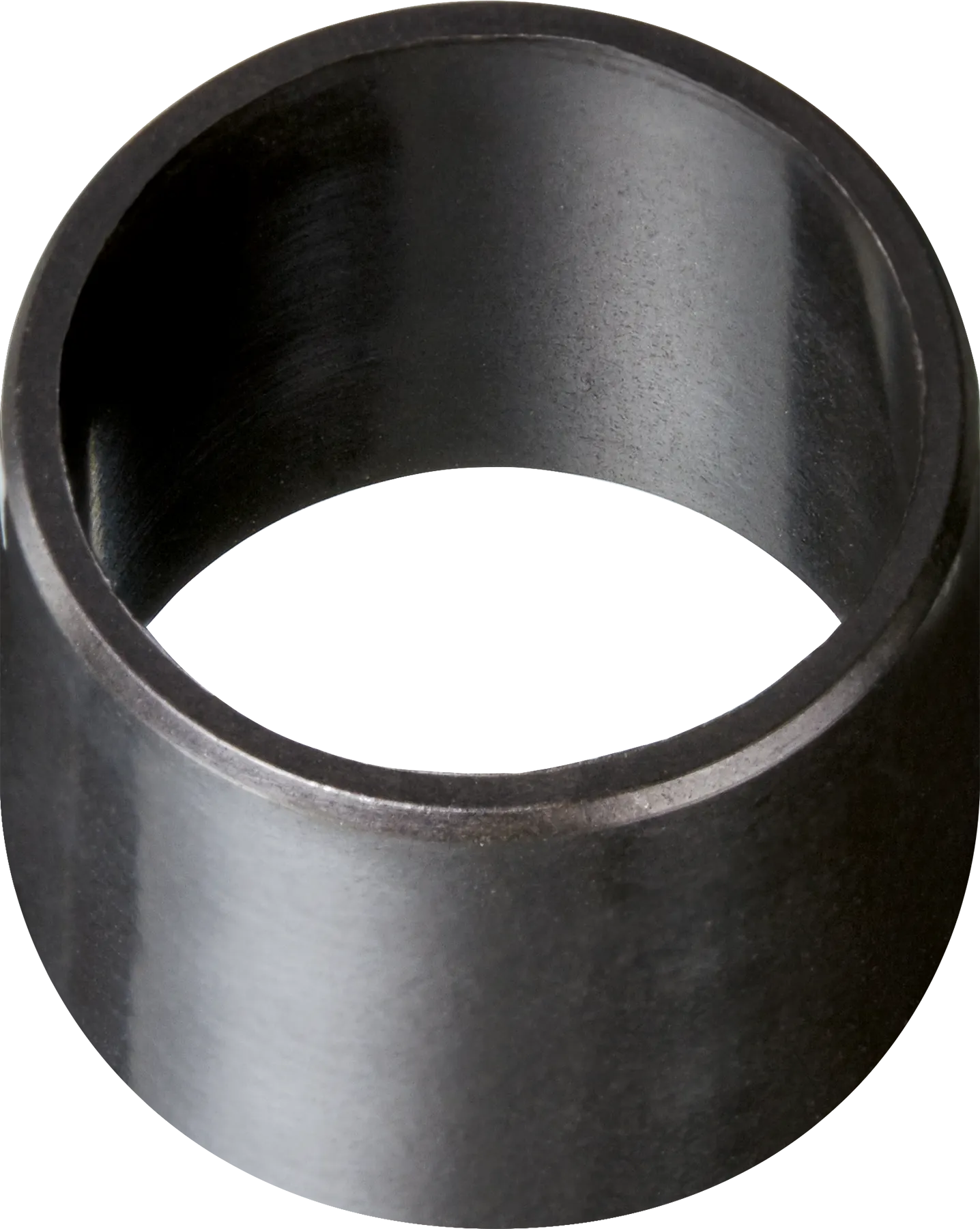

iglide® T500 plain bearing

iglide® T500

  • Up to 21755 psi static, 150 MPa static
  • Temperature resistant from -125°C to +250°C (-212°F to +482°F) in continuous operation
  • Universal resistance to chemicals
  • High compressive strength
Shop now
Bearing technology in motor vehicles: application examples

Further areas of application
More application examples for our dry-tech bearing technology products in motor vehicles (interior, engine compartment, exterior and chassis)

Learn more
iglide® plain bearing in front of vehicle interior

Bearing technology solutions in motor vehicles
To the overview page with information on selected common and the latest dry-tech products

Learn more
