cleanroom cable carrier | e-skin® SK

Advantages of e-skin®

compared to conventional corrugated hoses:

The e-skin is a hose consisting of an upper and lower shell that is fully closed when plugged together. It consists of the specially developed polymer material igumid SK. The simple and reclosable opening mechanism enables easy maintenance and inspection of the installed cables. Operating temperature +10°C / +50°C.

Typical branches of industry and applications: Display and semiconductor manufacturing, pick & place applications, printers, medical technology and all machines where corrugated pipes are used, display and semiconductor manufacturing

Contact an igus® expert now

e-skin® SK

For unsupported lengths up to 2m and installation space from 250mm

To the product

e-skin® soft SKS

For unsupported length up to 1.3m and installation space from 150mm

To the product

e-skin® Hybrid SKY

For unsupported length up to 1.4mm and installation space from 200mm

Interior separation configurator

Configure now

Technical details

1.  Mounting brackets: structurally stable, with integrated strain relief
2.  Small installation space: small bend radii
3.  Unsupported application due to stop-dogs on the upper shell of the e-skin®
4.  Cleanroom ISO Class 1: virtually no wear or abrasion
5.  Cable-friendly: defined minimum bend radius
6.  Easy assembly: upper and lower shell can be opened for easy filling

Series SK28

click to enlarge

Mounting Bracket

click to enlarge

Corrugated hoses have the same bend radius along their entire length

The e-skin® consists of two shells (upper/lower shell). The shells can be configured in order to define the nature of the movement involved

The interior of corrugated tubes cannot be divided into sections

e-skin® can be fitted with interior separation system

Corrugated hoses have little or no inherent rigidity.

e-skin® is suitable for short unsupported lengths in a small installation space (2) and has a defined bend radius (5)

Very little if any stability in respect of forces acting on the sides

Lateral stability thanks to the oval (6) geometry of the e-skin®

Corrugated hoses cannot be used unsupported

e-skin® supports itself and can be used for short, unsupported lengths

Corrugated hoses for dynamic applications cannot be opened

e-skin® can be opened on its outer radius and filled quickly

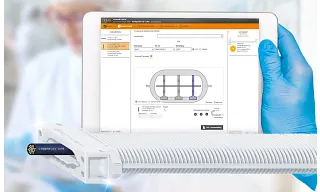

Interior separation configurator for the e-skin®

With the interior separation configurator for the e-skin® corrugated tubes, you can create filling variants in just a few seconds and configure complete e-skin® corrugated tubes with interior separation and mounting brackets.

Easy to fit
Avoidance of filling errors due to integrated filling guidance
Automatic creation of a parts list and drawing with dimensioning
Easy to submit a request and order the complete corrugated tube with chainflex® cables and interior separations in the desired configuration.

Configure the interior separation now

e-skin® interior separation configurator

Configure the interior separation now

Tested in the igus® test laboratory for use in the real world

Continuous test

Developed for cleanroom applications, the e-skin® SK has been tested under real conditions with 6.4 million double strokes at 3m/s in the laboratory.

Bending test

The standard bending tests show how flexible the e-skin® soft is. It only bends, even under loads that would break other energy chains.

Noise level measurement

This test shows how quiet 'e-skin' corrugated tubes and 'e-skin® flat' cleanroom cables are. Compared to flat ribbon cables of competitors, the noise level of the e-skin® flat is only 29dB(A).
