Lead screw drives are machine elements that convert rotary movement into linear motion. dryspin® lead screw drives are always based on self-lubricating plastic nuts, enabling long-lasting operation without external lubrication. dryspin® lead screw drive technology
is based on the principle of lubrication-free linear technology. The properties and geometries of the lead screw drives, which are tailored to the plastic nut and lead screw, along with the unique dryspin® technology guarantee an even longer service life and greater efficiency.
What was needed: A parcel station locker system that offers users maximum ease of maintenance
Requirements: Absolutely no lubrication or maintenance, quiet dry operation, mechanical resistance, simple implementation, low wear, ability to handle high loads
Products used: dryspin® lead screw, drylin® linear guide, iglidur® polymer plain bearings
Success for the customer: To offer users maximum ease of maintenance, the engineers use igus® polymer plain bearings in the electromagnetic guides. They allow dry, quiet, maintenance-free operation without external lubrication and are mechanically resistant. This also applies to the lead screws and linear guides used in the parcel locker opening mechanism.
What was needed: A delta robot capable of picking up fish and injecting them with vaccine
Requirements: Absolutely no lubrication or maintenance; resistance to corrosion, fresh water, salt water, cleaning chemicals, and abrasion; robustness
Success for the customer: Since the robot is used outdoors on fish farms in Norway, Scotland, and Iceland, all components must be resistant to fresh water, salt water, and cleaning chemicals. The company therefore uses robust, lubrication-free igus® polymer bearings, anodised shafts, and lead screw systems. The design engineers also manufactured a vaccine injector from a CNC block of high-performance polymer. It is resistant to abrasion and to the oil-based vaccines.
What was needed: A biscuit-pouring machine capable of producing a wide variety of shapes required by the customer and the market
Requirements: Absolutely no lubrication or maintenance, resistance to flour dust and regular hot water washing, precision
Success for the customer: The machine, equipped with a pump mounted on electric axes, implements biscuit designs and cake decorations by pouring dough precisely. The axes are driven by four stepper motors, and transverse and vertical displacement is on the drylin® guide rail with built-in dryspin® lead screw. The guides are equipped with four WJ200UM pillow blocks.
What was needed: A mobile scanning machine with which even complex plates and free forms can be inspected with air ultrasound
Requirements: Absolutely no lubrication or maintenance, many degrees of freedom in movement, low weight, ability to withstand high forces, high precision, compactness, low backlash
Success for the customer: The designers rely on drylin® series lead screw linear modules with adjustable plain bearing clearance and robolink® D series joint drives with stepper motors, encoders, and initiators. The components are compact and suited to industrial use and allow modular machine design. The engineers say that the drylin® lead screw has amazingly little backlash (too little to be noticed), allowing precise measurements.
What was needed: Earth can be hauled from pits up to 65 meters deep thanks to a pulley module made by Ets Payant, a French company. The module is mounted under the boom of an excavator
Requirements: Absolutely no lubrication or maintenance, robustness, insensitivity to weathering effects, ability to withstand severe impacts and handle great weights
Success for the customer: igus® solutions can be found in the most diverse areas – In the centre pins for the folding arms of the roller reefing systems, the centre pins on the housings for fastening the hoses to the shaft end support, the guides for the hose tensioning dampers in the housings, and the guides and drives for the winding machine carriage . In all of this, all igus® parts fulfil requirements.
What was needed: In the automotive industry, complex parts are washed automatically after painting in a carousel washing system made by Noyen, a Polish manufacturer
Requirements: Absolutely no lubrication or maintenance, the ability to withstand high humidity and temperatures, low weight, robustness, accurate positioning, ease of conversion
Products used: drylin® SHT-20 linear module with dryspin® lead screw and lead screw nut
Success for the customer: An important design goal was to create simple, ergonomic manual loading capability. The large number of references required not only suitable tools, but also actuator repositioning between references. This required a lockable, easy-to-operate, sliding mechanism.
What was needed: A cleaning machine that disinfects reusable cups within a few seconds using steam at 140°C
Requirements: Absolutely no lubrication or maintenance, use in small installation spaces, robustness, reliability, low-friction dry operation, wear resistance, quiet operation
Products used: drylin® SLW-1040 with integrated stainless steel dryspin® high helix lead screw, drylin® guide rail and matching DC motor
Success for the customer: To make the machine compact, the designers had to miniaturise all components – including the linear guides and bearings for the cleaning dome, which descends over the cup before cleaning. The components also had to be robust, reliable, low-maintenance, and free of grease. igus® linear guides and polymer plain bearings are therefore being used.
What was needed: An alternative to metallic ball screw nuts that can be produced independently in 3D printing
Requirements: Absolutely no lubrication or maintenance; quiet, smooth operation; easy manufacturing; no clearance
Material used: iglidur® I190-PF 3D print filament
Success for the customer: The design allowed no other way to achieve the set goal. The parameters were prescribed, and the final product had to work. Optimising the contact area was crucial to reducing friction. Thread surface hardening reduced it further. After several printing attempts, the print quality improved.
What was needed: A device that rehabilitates patients with lower limb dysfunction
Requirements: Absolutely no lubrication or maintenance; quiet, vibration-free operation; low weight; easy assembly
Success for the customer: A movable, variable-length orthosis with numerous adjustable leg clamps allows the Prodrobot adapt to a wide range of requirements. The parts installed by igus allowed smooth rehab device adjustment. A long service life and operation suitable for the disabled are guaranteed because igus products require no lubrication or maintenance.
What was needed: A racing sailboat that floats above the water surface by converting water pressure
Requirements: Absolutely no lubrication or maintenance, no impairment by seawater, dynamic movements, resistance to the required loads, smooth operation, low weight, easy installation
Success for the customer: The lead screw nuts, plain bearings, and rod ends installed by igus® guarantee low coefficients of friction for the necessary upper joint sliding, dampen vibrations transmitted from the rudder and, unlike their metallic counterparts, require no lubricants and are easier to clean from the salt residue left by seawater.
What was needed: An innovative field drainage machine that can manoeuvre plastic drainage tiles on the job site and unroll plastic tiles alongside the trenching and ploughing equipment
Requirements: Absolutely no lubrication or maintenance; ability to handle hot, humid, icy, and very dirty environments; long service life; suitability for a wide range of temperatures
Success for the customer: Hypro has developed a collapsible upper guide rail frame that can be retracted into the centre column. This collapsible frame uses an igus high-speed lead screw and lead screw nut to achieve this innovative, time-saving solution.
What was needed: A precise large-format 3D printer suitable for use in offices or workshops
Requirements: No maintenance, easy installation, high accuracy, absolutely no lubrication, no dust or dirt adhesion
Products used: drylin® T rail guide and guide carriage with adjustment, dryspin® high helix lead screw and high helix lead screw nut, e-chain® energy chains
Success for the customer: The engineers use linear guides, carriages, and dryspin® type lead screws and lead screw nuts for the linear movements of all three axes. The lead screws allow travel speeds of up to 120mm/s. All components contribute to minimising 3D printer maintenance.
What was needed: A precise, quiet 3D printer that meets the "Made in India" conditions
Requirements: Absolutely no lubrication or maintenance; precise, quiet, vibration-free operation; smooth dry operation
Products used: dryspin® lead screws and lead screw nuts, iglidur® plastic plain bearings, E2 energy chains for medium loads, drylin® T rail guide, drylin® N low-profile linear guides, and drylin® W profile guides with corresponding carriages and pillow block bearings
Success for the customer: Fabforge Innovations is a 3D printer manufacturer based in southern India with operations nationwide. It used to use linear rails from other manufacturers, but to meet the "Make in India" conditions, Fabforge Innovations changed the design and used igus® products.
What was needed: A compact, portable 3D printer that can still produce detailed 3D parts
Requirements: Top performance even in tight spaces, no maintenance, absolutely no lubrication, low wear and friction, smooth dry operation, no noise or vibration, no dust or dirt adhesion
Success for the customer: In developing countries and distressed areas, a portable device capable of high-precision 3D printing is very helpful. It is a radical advance for dental and medical care. The igus® products in the 3D printer ensure a long service life, clean printing conditions, and dry operation without vibration or noise.
What was needed: A professional, technically advanced 3D printer that works reliably with FDM technology
Requirements: Long service life, absolutely no lubrication or maintenance, easy assembly
Products used: dryspin® high helix lead screw and low-clearance lead screw nut
Success for the customer: For large-format 3D printers, igus® components are the key elements for X-, Y-, and Z-axis drives. dryspin® DST high helix lead screws ensure trouble-free, maintenance-free movements; the entire drive unit can be easily assembled, and material consumption is reduced.
What was needed: A sports device that trains physical fitness based on surfing movements - entirely without water
Requirements: No maintenance, low cost, absolutely no lubrication, low wear, smooth dry operation, low friction
Success for the customer: To realistically simulate the complex surfing movements, the company relies completely on the advantages of iglidur high-performance plastics. Optimised for friction and wear, igus tribo-polymers fulfil expectations, especially in terms of cost and maintenance reduction.
What was needed: A remote-controlled installation rover for installing and uninstalling signalling balls on power lines
Requirements: Dirt resistance, no lubrication, no maintenance, low friction, high rigidity, travel carriage stabilisation, no metal particle release, energy savings, low cost, good mass-performance ratio
Success for the customer: The igus® solutions were applied to the installation rover's laying arm. The drylin® linear guide ensures high rigidity at low mass and stabilises the carriage. The low friction of the plain bearing bushings and the linear guide saves energy during torque transmission through the polymer trapezoidal nut to the stainless steel lead screw.
What was needed: A dosing machine in which autocaps ensure that the dosing head closes effectively and automatically after each dosing process
Requirements: Low cost, very low dry friction on metallic materials, no stick-slip effect, long service life, dirt resistance, noiselessness
Success for the customer:The igus® solutions also allow translation rotation with a single actuator instead of using two separate actuators or a helical actuator.
What was needed: A flexible gripping system consisting of one parallel gripper and one vacuum gripper that can be adapted to different object geometries
Requirements: Suitable for small installation spaces, cost-effective, lubrication- and maintenance-free, no corrosion, long service life, simple assembly, robust, reliable application
Success for the customer: For the most compact design possible, classic machine elements were replaced with such igus products as plastic plain bearings, guides, and lead screw drives, which are also more cost-effective.
What was needed: A drive system that can move a height-adjustable, fixed table in a pool without any problems - despite the permanent pool water environment
Requirements: Water resistance, absolutely lubrication- and maintenance-free, corrosion resistance, very smooth movements, long service life, hand wheel movement option
Success for the customer: The dryspin® lead screw drives guarantee smooth table adjustment in the pool. The material properties of dryspin® lead screw nuts made of iglidur® high-performance polymers make them perfect for continuous use in chlorinated water. Plastic lead screw nuts and plain bearing bushings and stainless steel lead screws eliminate corrosion.
Precise, reliable cleanroom 3D printer for processing thermoplastics.
A precise, large-format 3D printer suitable for use in offices or workshops
A compact, portable 3D printer that can still produce detailed 3D parts
A 3D printer that can produce its own essential parts quickly and precisely
A professional, technically advanced 3D printer that works reliably with FDM technology
A precise, quiet 3D printer that meets the "Made in India" conditions
Lead screw nut as an alternative to the conventional ball screw nut - directly from our own 3D printer
This 3D printer is only ten centimetres high, but prints objects of the highest quality.
A solution that provides more safety for work at height, for which the modular SRU safety platform for Euro pallet high-bay warehouses is used.
A delta robot capable of picking up fish and injecting them with vaccine
A parcel station locker system that offers users maximum ease of maintenance
A biscuit-pouring machine capable of producing the wide variety of shapes required by the customer and the market
A mobile scanning machine that can be used to inspect even complex plates and free forms with air ultrasound
An automatic cleaning machine that disinfects cups in just a few seconds with steam at 140°C
Washing complex parts automatically after they are painted is the task for which the rotating car wash brush system was developed
Components for the automatic cup tray adjustment mechanism for a fully automatic coffee machine
Lubrication-free drylin® trapezoidal lead screw nuts are used in a book scanner for the digitalisation of cultural assets.
Improved sliding properties thanks to 3D printed replacement parts in a winding machine.
A dosing machine in which autocaps ensure that the dosing head closes effectively and automatically after each dosing operation
Compact automation solution with high quality that is easy to operate
A remotely controlled installation rover for installing and uninstalling signalling balls on power lines
Learn more and in detail about the reasons why dryspin® technology is used in automobiles.
Washing complex parts automatically after they are painted is the task for which the rotating car wash brush system was developed
A lead screw drive that is fitted on the outside of the vehicle, is exposed to water and dirt and nevertheless functions perfectly
.jpg?h=200&crop=yes&w=270&quality=80)
An electrically operated lead screw drive is responsible for opening and closing the boot lid fully automatically.
An electrically operated lead screw drive inside the vehicle for adjustment of the rear bench seat.
A maintenance-free, vibration-resistant, durable motorised TV lift for a caravan interior.
Maintenance-free in rail transport thanks to lubrication-free lead screw drives - reduced wear and extended service life
No jamming or sluggishness during continuous sliding step operation
Use of high helix lead screw nut with flange in a switchgear ("linear switch") for a railway control panel.
An innovative field drainage machine that can manoeuvre plastic drainage tiles on construction sites, unrolling them next to the device
Ets Payant's pulley module, attached under an excavator boom, facilitates the movement of earth out of pits up to 65 metres deep
This device assists in levelling dry fills.
A racing sailboat that floats above the water's surface thanks to special wing profiles and water pressure conversion
Effortless raising and lowering with the relevant load, low expenditure, no lubrication or maintenance, weather resistance.
A drive system that can easily move a fixed, adjustable table in the pool - despite the permanent pool water environment.
No matter how much sun shines, these sun shades ensure pleasant lighting conditions in the building.
Error-free workflow in process technology
drylin® trapezoidal lead screw nuts and iglidur® high-performance polymer in two-component mixing station.
Dry operating high-performance polymers from igus® enable a wide range of settings in Krones' labelling machines.

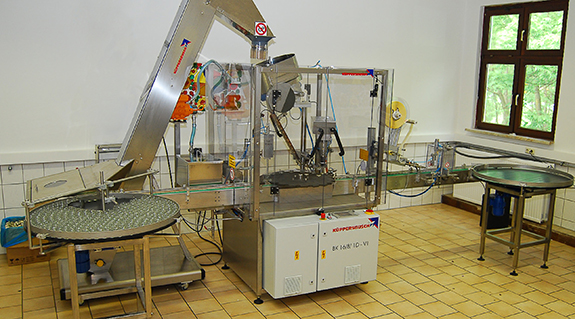

The Küppersbusch GmbH manufactures customer-specific beverage bottling systems with igus® bearing technology.
Clearance-free pre-loaded nuts enable precise and maintenance-free adjustment of the formats during format adjustment in the paper industry.
This holder is used for recordings with 3D cameras.
The drylin® trapezoidal lead screw nut was chosen for this application because it is lubrication-free and can be infinitely adjusted.
An espresso machine that can be operated manually and without electricity.
A biscuit-pouring machine capable of producing the wide variety of shapes required by the customer and the market
Chemical-resistant and corrosion-free: maintenance-free polymer plain bearings in commercial kitchen appliances.
Wafer baking plant
Rugged lead screw linear system for extracting paper ice cream cones.
A rocket module that collects space debris from orbit,
A replica of the throttle valves for simulated 737 NG and 737MAX aircraft.
Want more hygiene with lubrication-free lead screw drives? How can unwanted contamination be avoided in laboratories?
A solution that compiles and blisters individual combinations for patients from up to 700 medications.
Precise, reliable cleanroom 3D printer for processing thermoplastics.
A clean bottling, which does not have to be sterile, but has to be very clean, and a low overall weight of the system
Optimally simulated birth process with the SIMone birth simulator from 3B Scientific GmbH.
An extremely clean application of the igus products, as well as high efficiency and a fast feed
A simple installation of the parts, low maintenance effort and the best MRI compatibility
In this rehabilitation device drylin® lead screw nuts are used for
format adjustment.
Among other things, the use of drylin® made it possible to halve the weight
of this laser marking station for the locking of samples.
This machine cuts figures and elements from polystyrene blocks.
With this hot wire cutting machine polystyrene parts are cut, which are mainly used in model aircraft construction.
A flexible media supply system that can be navigated in three dimensions to any location and disappears discreetly into the ceiling at the touch of a button.
Lubrication-free and clearance-free lead screw/nut system ensures precise glue application in edge banding machines.
A drive system that can easily move a fixed, adjustable table in the pool - despite the permanent pool water environment.
Thanks to the drylin® TR high helix lead screw nuts used in two chess computers, large strokes can be covered in a very short time.
Smooth operation under extreme ambient conditions
The sports equipment allows physical fitness to be trained on the basis of surfing movements - without any water at all
A device that rehabilitates patients with lower limb dysfunction
This rehabilitation device uses drylin® lead screw nuts for
format adjustment.
Precise and durable - plastic plain bearings for a new type of leather splitting machine
When designing customer-specific folding box gluers, the special machinery manufacturer Bernhardt Maschinenbau relies on lubrication-free and maintenance-free linear plain bearings.
When designing customer-specific folding box gluers, the special machinery manufacturer Bernhardt Maschinenbau relies on lubrication-free and maintenance-free linear plain bearings.
Stepcraft's CNC milling machines enable hobbyists and industrial users (such as prototype designers) to discover new freedom and turn their CAD drawings into reality.
